990 Vibration Transmitter

The 990 Vibration Transmitter is intended primarily for the original equipment manufacturers (OEMs) of centrifugal air compressors or small pumps, motors, or fans who prefer to provide a simple 4 to 20 mA proportional vibration signal as the input to their machinery control system.

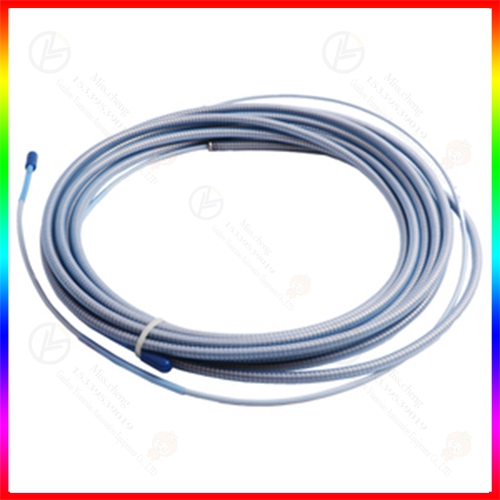

The transmitter is a two-wire, loop-powered device thataccepts input from our 3300 NSv proximity probe and itsmatching extension cable (available in 5 m and 7 m systemlength options).

The transmitter conditions the signal into appropriate peakto-peak vibration amplitude engineering units, and providesthis value as a proportional 4 to 20 mA industry-standardsignal as the input to the control system where machineryprotection alarming and logic occurs†.

The 990 transmitter provides the following notable features:

l Integrated Proximitor Sensor requires no external unit

Non-isolated "PROX OUT" and "COM" terminals plus acoaxial connector to provide a dynamic vibration andgap voltage signal output for diagnostics‡.

Non-interacting zero and span potentiometers underthe Transmitter label supports loop adjustment.

Test Input pin for quick verification of loop signal output,using a function generator as the input.

A Not OK/Signal Defeat circuit prevents high outputs orfalse alarms due to a faulty proximity probe or looseconnection.

Choice of DIN-rail clips or bulkhead mounting screwsas standard options simplifies mounting.

Product Parameter

Model Number: 991-25-70-01-00

Origin:USA

Bently series of products
