product description

Product details

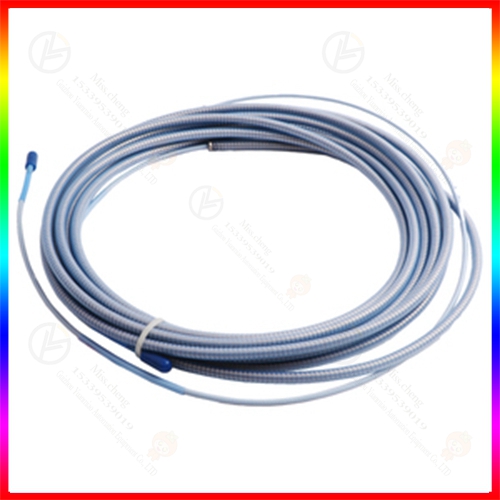

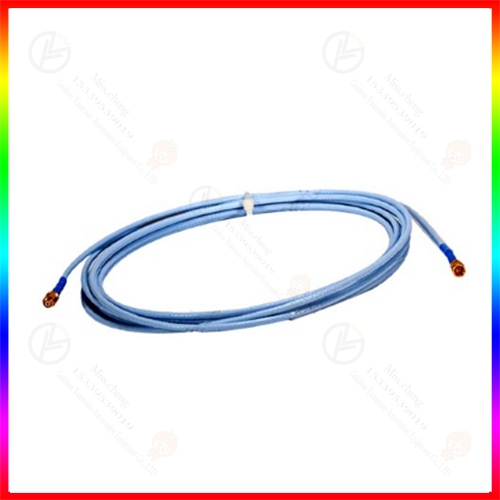

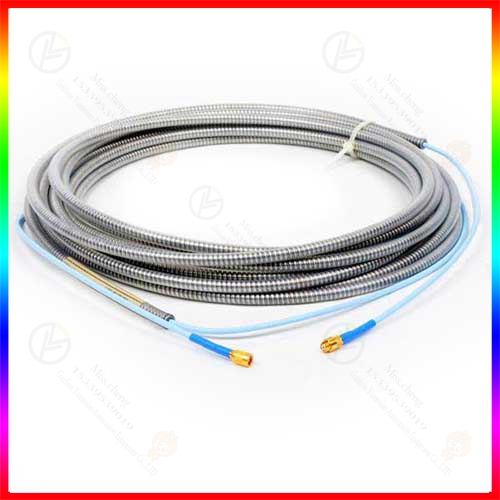

The features of the Bently Nevada 3300 XL standard extension cable include:

Wide range of applications: especially suitable for compression systems, speed measurement and fluid film bearing machines. The system is able to address the various measurement requirements in these complex industrial environments, providing accurate and reliable data.

Wide temperature range: Suitable for applications under a variety of temperature conditions, it can maintain stable performance and ensure accurate measurement results in a variety of environments.

Component interchangeability: The various components of the system, including the probe, extension cable and preconnector, are fully interchangeable. This design allows users to easily replace or upgrade a part of the system without requiring complex calibration or adjustments to the entire system.

Good backward compatibility: The Bently Nevada 3300 XL standard extension cable has good backward compatibility with other non-XL 3300 series sensor system components. This means that users can mix new XL components with older non-XL components, allowing for seamless upgrades and expansion of the system.

In addition, the Bently Nevada 3300 XL 8mm displacement sensor system consists of a 3300 XL 8mm probe, a 3300 XL extension cable and a 3300 XL Proximitor sensor. The system outputs a voltage by measuring the distance between the probe tip and the observed conductive surface, which is directly proportional to the distance. Therefore, it can measure both static (position) and dynamic (vibration) values.

In the field of application, the system is mainly used for vibration and position measurement of fluid film bearing machines, as well as key phase and speed measurement. It is fully compliant with the American Petroleum Institute's (API) 670 standard (4th edition), with excellent mechanical configuration, linear range, accuracy and temperature stability.

Taken together, the Bently Nevada 3300 XL standard extension cable is an industrial measurement assembly with superior performance, wide applicability, interchangeability and backward compatibility. Whether used in compression systems, speed measurement or fluid film bearing machines, it provides accurate and reliable measurement data to meet the needs of a wide range of industrial applications.

Product Parameter

Model Number: 330191-00-30-10-00

Origin:USA
